A Complete Guide to Control and Power Wiring in Switchgear Panels

Switchgear panels are essential for managing, protecting, and controlling electrical systems in industrial, commercial, and residential setups. Their proper operation relies heavily on precise wiring, which includes both control wiring and power wiring. This blog serves as a complete guide to control and power wiring in switchgear panels, explaining their differences, importance, best practices, applications, and maintenance tips. By understanding how to implement these wiring systems correctly, businesses can ensure safety, reliability, and efficiency in their electrical operations, reduce downtime, and extend the lifespan of equipment.

Understanding Control and Power Wiring

Control Wiring

Control wiring refers to the low-voltage wires that carry signals between switches, relays, sensors, and other devices inside a switchgear panel. These wires transmit instructions to start, stop, or regulate equipment and play a vital role in automation and safety systems.

Key features of control wiring include:

  • Handles low-voltage signals (typically 24V, 48V, or 110V)
  • Uses thin and flexible conductors for easy routing
  • Often color-coded for easy identification
  • Provides insulation or shielding to prevent interference

Control wiring ensures accurate communication between devices, allowing precise control of machinery, equipment, and safety systems.

Power Wiring

Power wiring, in contrast, carries high-voltage currents to energize equipment and circuits. It is responsible for distributing electrical power safely and efficiently within the panel and throughout the connected system.

Key features of power wiring include:

  • Handles high-voltage currents (commonly 400V, 690V, or higher)
  • Uses thicker conductors for high current-carrying capacity
  • Requires strong insulation for safety and durability
  • Typically routed through busbars, cable trays, or conduits for organization

Power wiring is critical for supplying electricity to motors, machines, and other essential equipment, ensuring the panel fulfills its primary function.

Industrial environments often expose cables to vibrations, temperature fluctuations, oils, and chemicals. Multi-conductor flexible cables are built to withstand these conditions, ensuring long-lasting performance.

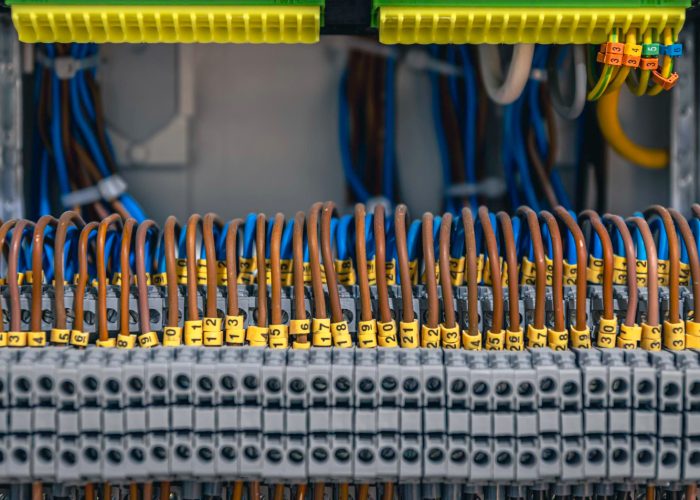

24809

Importance of Proper Wiring in Switchgear Panels

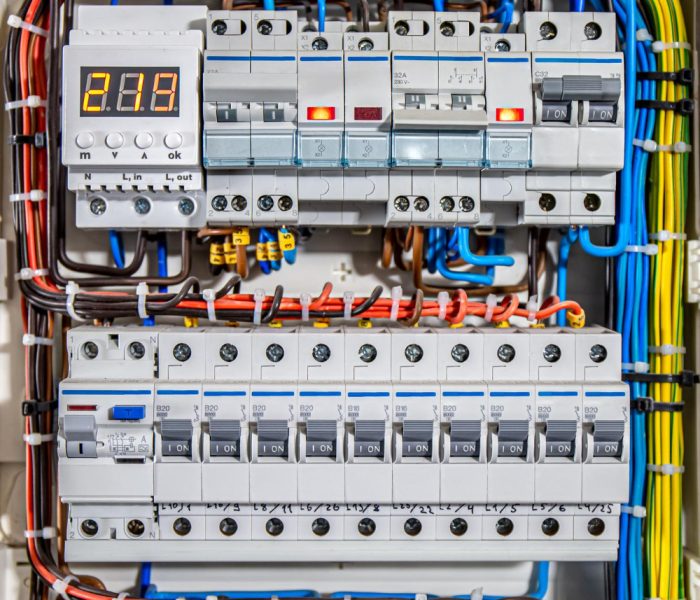

51919

Proper wiring in switchgear panels is crucial for several reasons:

  • Safety: Correct wiring prevents electrical shocks, short circuits, and fire hazards.
  • Reliability: Reduces faults and ensures uninterrupted operation.
  • Efficiency: Properly designed wiring minimizes energy losses and ensures devices work as intended.
  • Maintenance: Organized wiring makes inspection, testing, and troubleshooting easier.
  • Longevity: High-quality wiring extends the operational life of the switchgear panel and connected equipment.

Improper wiring, such as loose connections or the use of substandard wires, can lead to serious operational and safety issues, increasing downtime and maintenance costs.

Best Practices for Control and Power Wiring

  • Planning and Design: Start with a detailed plan of the panel layout, identifying the positions of all devices, routing paths, and required wire sizes to avoid clutter and inefficiencies.
  • Use High-Quality Components: Select wires, cables, terminals, and connectors that meet industry standards to ensure durability, safety, and optimal performance.
  • Color Coding and Labeling: Using standard color codes for control and power wiring and labeling each wire simplifies identification, reduces errors, and speeds up maintenance.
  • Separation and Routing: Keep control and power wiring separate to avoid interference. Use conduits, ducts, or cable trays to maintain organized routing.
  • Secure Connections: Ensure tight connections at all terminals and devices. Loose connections can cause overheating, sparks, or system failures.
  • Testing and Verification: After installation, perform thorough testing for continuity, insulation resistance, and proper operation to guarantee a fully functional system.

Applications of Control and Power Wiring

  • Industrial Plants: Automation of machinery, motor control, and production line management.
  • Commercial Buildings: Power distribution and control for lighting, HVAC, and security systems.
  • Energy and Utilities: Managing electricity in substations, power plants, and renewable energy systems.
  • Data Centers: Providing reliable power and control for servers and IT infrastructure.
  • Residential Complexes: Controlling elevators, lighting, and electrical distribution systems efficiently.

These applications highlight the importance of properly designed and installed control and power wiring for safe and reliable operations across various sectors.

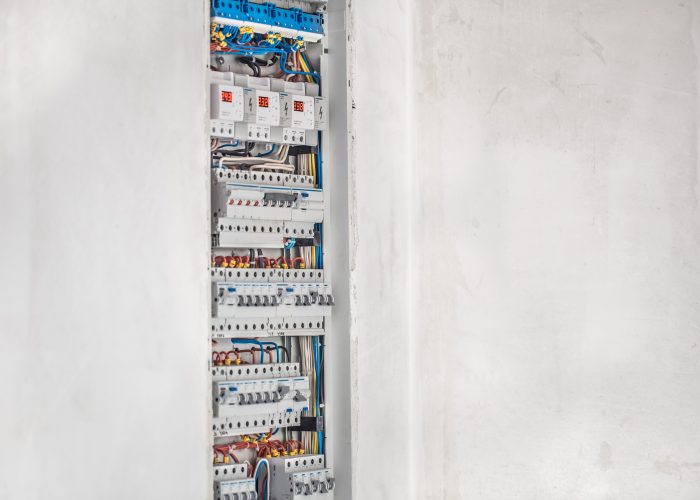

5076

Tips for Maintaining Switchgear Panels

  • Conduct regular inspections to identify loose connections, damaged wires, or signs of overheating.
  • Keep panels clean and free from dust, moisture, and corrosive materials to prevent wire deterioration.
  • Maintain updated documentation of wiring layouts for troubleshooting and future expansions.
  • Replace aging or damaged wires promptly to avoid operational failures.
  • Schedule professional maintenance periodically to ensure continued reliability and safety.

Proper maintenance not only ensures smooth operations but also extends the life of the switchgear panel and connected equipment.

Common Challenges and How to Avoid Them

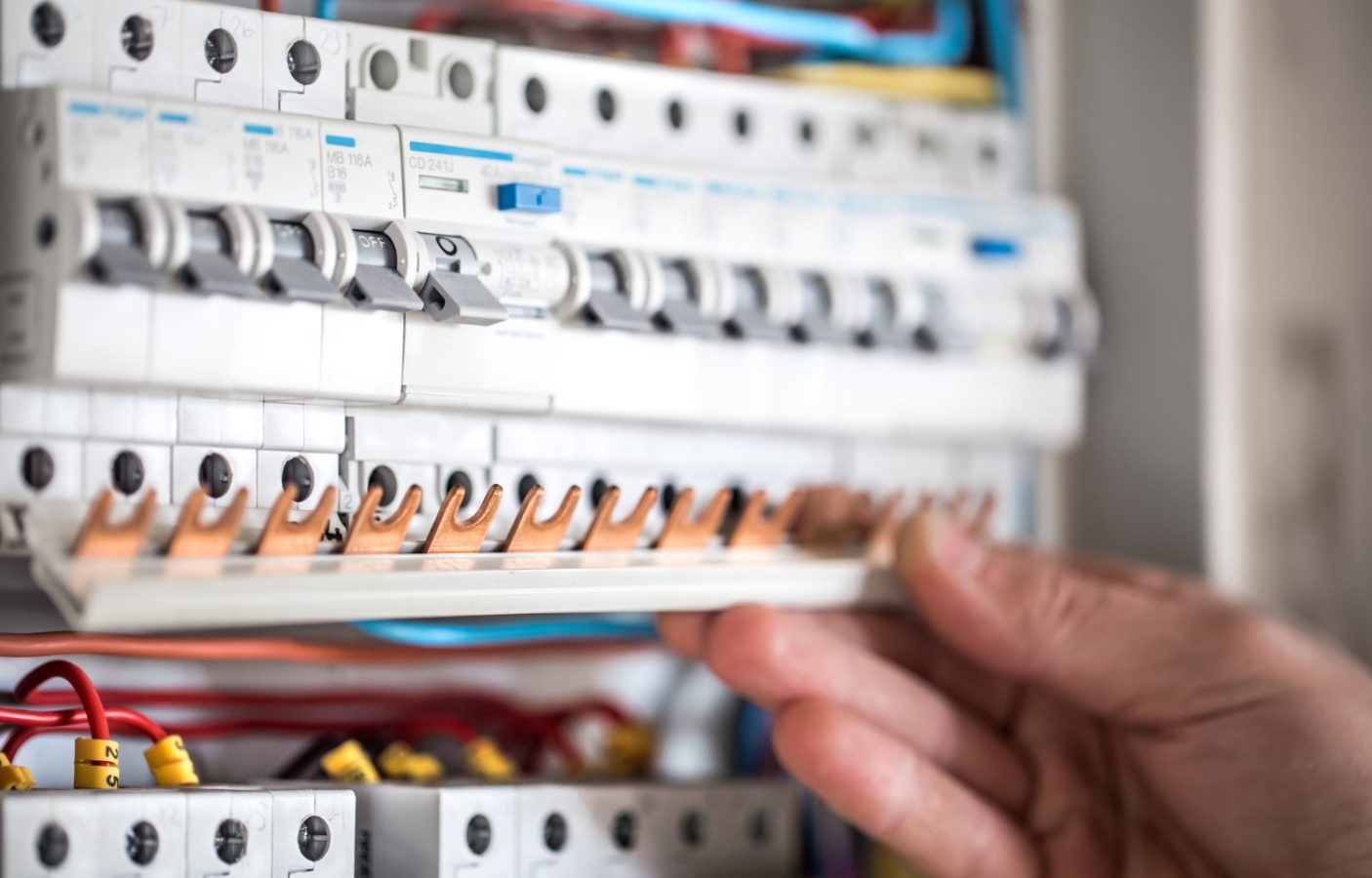

5086
  • Interference Between Control and Power Wiring: Always route these wires separately and use shielding for sensitive control signals.
  • Overloaded Circuits: Ensure proper wire sizing according to the current and voltage requirements of the system.
  • Poor Connection Practices: Use crimping tools and proper terminals to avoid loose connections that can lead to faults.
  • Lack of Documentation: Keep accurate records of wiring layouts to avoid confusion during upgrades or repairs.

By addressing these challenges proactively, businesses can ensure safe and efficient switchgear panel operations.

Conclusion

To sum up, control and power wiring form the foundation of reliable and efficient switchgear panel operations. While control wiring enables accurate communication between devices, power wiring ensures safe and efficient electricity distribution to equipment. Both types of wiring require careful planning, quality materials, proper installation, and regular maintenance to prevent faults, reduce downtime, and improve overall system performance.

Partnering with experienced professionals like Levit Electric ensures that switchgear panels are equipped with high-quality, properly installed control and power wiring solutions. Investing in expert wiring services guarantees safety, reliability, and long-term operational efficiency, supporting the smooth functioning of electrical systems across industrial, commercial, and residential setups.
